Festool TS55 FEBQ-Plus-FS Plunge Saw Kit With 2 x 1400mm Guide Rails 240v


Festool TS 55 FEBQ-Plus-FS Plunge Saw Kit 240v


  • Fine Cut Blade HW160 x 1.8 x 20 WD42T
  • Flag window, Vision Panel
  • Hex Key, WAF5
  • Splinter Guard
  • Systainer SYS3 M 337
  • 2 x FS1400/2 Guide Rail’s
  • 2 x Rail Connecting Bars
  • 2 x FSZ Rail Clamps
Categories: ,


Our masterpiece. Decisively improved. Now twice as fast.


Millions of saws do not lie, The TS 55 has always stood out with its absolute precision cuts, maximum power and extreme durability. The usual reliability remains but the working speed is unprecedented: The TS 55 now saws at up to twice the speed.


In addition, the new generation of cutting blades guarantees perfect cutting quality with maximum cutting performance. With accessories, such as guide rails and the angle stop, or sophisticated and tried-and-test details, such as the splinter guard and extraction system perfectly matched to the machine, the TS 55 provides excellent work results and a top-class sawing system – for every challenge.



  • Concentrated torque and up to twice as fast work progress with an increased saw blade service life
  • Virtually splinter-free on both sides thanks to attachable splinter guard
  • The cutting edge from 90° to 47° remains unchanged even when the saw swivels
  • Top-class sawing system thanks to a variety of accessories
  • Guide wedge for safer work and simple positioning in existing joint
  • Angle adjustment with undercut function from -1° to 47°



Main applications

  • Precise circular in materials up to 55 mm thick
  • Cutting interior doors to length using guide rail and circular saw
  • Manufacturing expansion joints in parquet flooring and false joints
  • Cutting chipboard to size
  • Cutting and processing plasterboard




Technical Specification:


Blade Diameter – 160 mm
Bore Diameter – 20 mm
Cutting Depth – 55 mm
Output Wattage – 1200 W
Power – Corded Electric
Power Source – Corded Electric
Product Group – Tool
Tool Type – Plunge Saw
Voltage – 240 V
Drive type: Mains
Power consumption: 1200 W
Idle engine speed: 2000 – 5800 min?¹
Saw blade diameter: 160 mm
Angular range: -1 – 47 °
Cutting depth: 0 – 55 mm
Cutting depth: 45° 43 mm
Dust extraction connection dia.: 27/36 mm
Weight: 4.5 kg

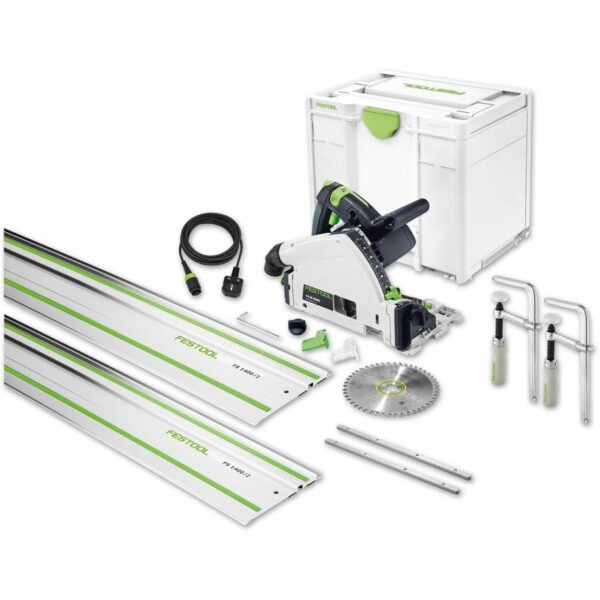

Supplied With:

1 x Festool TS 55 FEBQ-Plus Plunge Saw 240v

2 x 1400mm Guide Rails

2 x Connecting Bars

2 x FSZ Rail Clamps

1 x HW Fine Tooth Saw Blade WD42

1 x Splinter Guard

1 x Flag Window

1 x Vision Panel

1 x Hex Key

1 x Systainer SYS3 M 337
