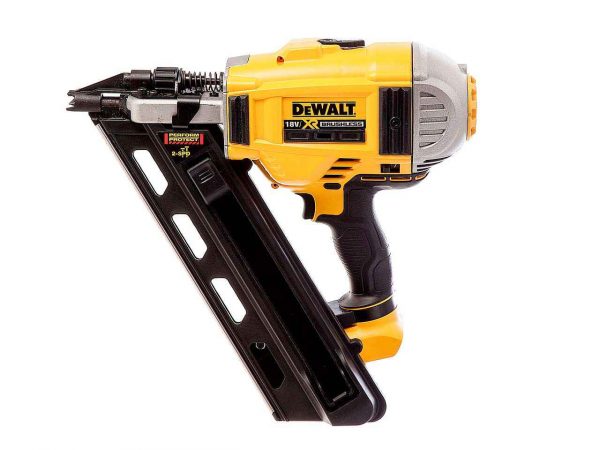

Dewalt DCN692N 18v Brushless Framing Nailer Body


Dewalt DCN692N 18v Brushless Framing Nailer Body

Out of stock

Categories: ,


Dewalt DCN692N 18v Brushless Framing Nailer Body


Tough, productive and easy to use – with the power to drive a 90mm ring shank nail temperatures as low as -15°. This nail gun is able to fire a 90mm ring shank nail into softwood and 63mm into hardwoods. A combination of intelligent electronics & the DEWALT BRUSHLESS motor means that even the heaviest user should complete a full days work with a single battery change. Unique Bump Mode function of the DEWALT nail gun allows the user to fire 2 nails per second. Battery pack below the handle creates a well-balanced unit that fits easily between 400mm centre studs.



Features and Benefits:


  • Two speeds
  • Longer run time
  • Quicker readiness to fire
  • Less recoil
  • Able to fire a 90mm Ring Shank nail in Soft Wood and 63mm into Hard Woods
  • Sequential operating mode allows for precision placement
  • Bump operating mode provides the user with production speed
  • Mechanical rather than gas operation offers consistent performance at temperatures between -20 and 50 degrees
  • Will accept most clipped head, and off centre, round head paper tape or wire weld collated framing nails
  • Reversible belt/rafter hook provides increased portability
  • Depths can be easily adjusted using the thumb wheel depth adjuster
  • Ergonomic tool design
  • Tool-free stall/jam clearance minimises user downtime
  • Cordless
  • User can engage contact trip lock-off and prevent accidental discharge of the fastener
  • Dry fire lockout ensures that the tool is protected from firing without nails in the magazine



Technical Specifications:


Battery chemistry – XR Li-Ion
Voltage – 18v
Nail Diameter – 2.8 – 3.3 mm
Magazine angle – 30 – 34°
Magazine loading – Rear load
Nail Length – 50 – 90 mm
Magazine capacity – Up to 55 Nails
Firing mode – Bump & Sequential
Length – 345mm
Width – 125mm
Height – 338mm
Weight – 4.1kg
Nailer Operating Mode – Selective
Integrated Belt Hook – Yes
Jam Clearing – Yes
Impact energy – 105J
Temperature Range – -20 to 50°C
Fault indicator – Yes


Supplied With:

1 x DCN692N 18V 90mm XR Brushless Framing Nailer Bare Unit
